Finder scope 9x50 + Tsir20

Codice articolo: TSFRE9x50

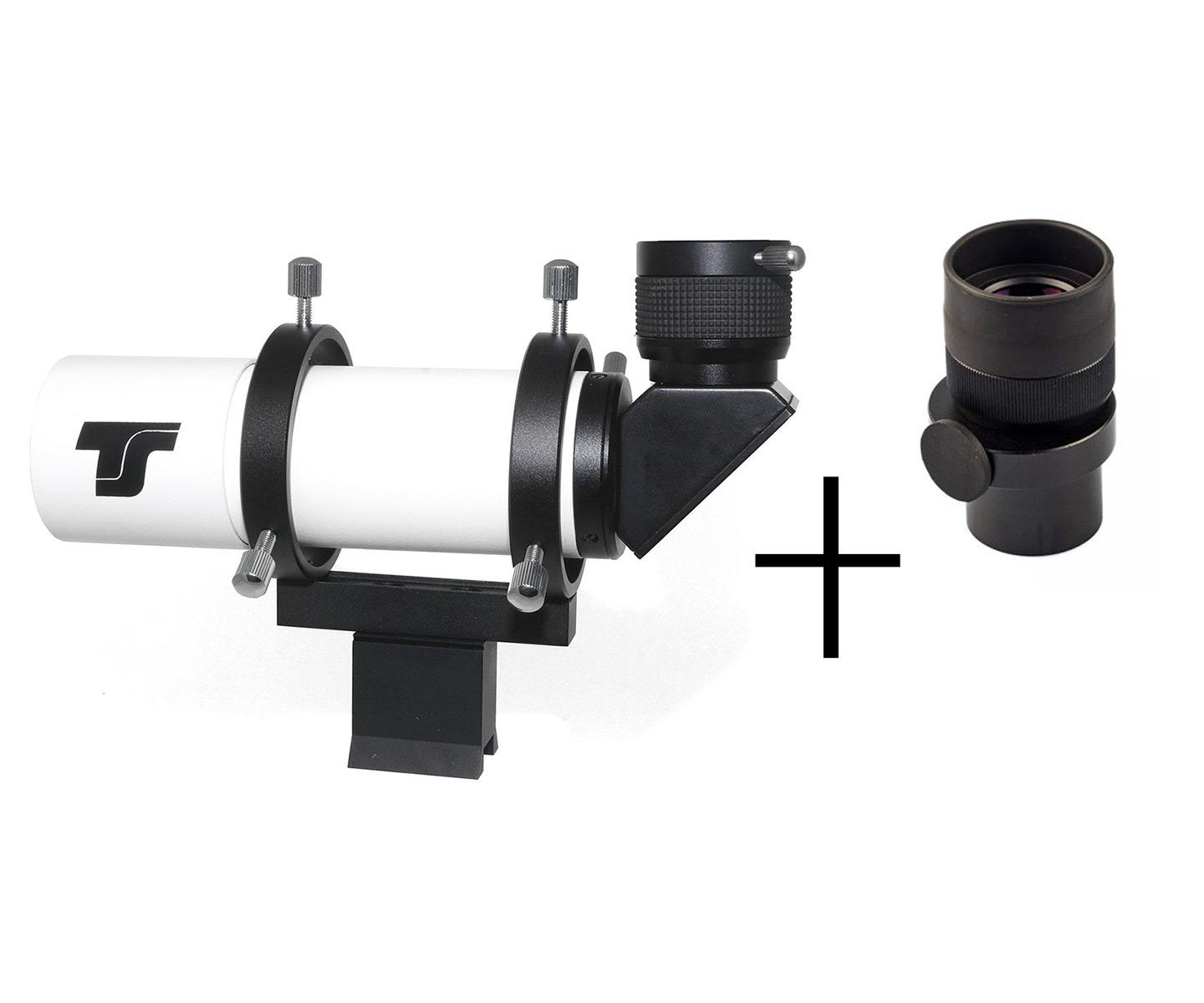

The angle finder provides an upright and laterally correct image and fits in standard finder shoes

• Powerful achromatic objective with 50 mm aperture and 208 mm focal length
  90° view with upright and laterally correct image
  23 mm illuminated crosshair eyepiece with 1.25" socket included
  1.25" connection with ring clamping and helical focuser - also suitable for Plössl and RK eyepieces for higher magnifications
  360° swiveling of the Amici prism for optimal viewing
  Adjustable tube rings with knurled screws for exact alignment relative to the main telescope
  Finder bracket suitable for finder shoes from Vixen, GSO, Skywatcher, Celstron etc.
•

TS Optics 50mm 90° finder with upright and laterally correct image and 9x magnification
The TSFRE50 is more than just a finder. The fine 2-element objective with 50 mm diameter already shows many hundreds of deep sky objects. But the finder can also be used as a guide scope.

The advantages and product features of TSFRE50:
High quality metal construction for best possible stability.
Fine 2-element objective with multicoating
Focusing by twisting the 1.25" helical focuser on the eyepiece side
Solid clamping by ring clamp
Upright and laterally correct image due to the 90° Amici prism
The viewing position can be rotated to the desired direction
Adjustable tube rings have metal screws with a plastic tip to avoid scratches on the telescope
The finder fits into standard finder bases as used by Skywatcher, Celestron, GSO ... are used
An illuminated crosshair eyepiece with 23 mm focal length for 9x magnification is included

The crosshair eyepiece is included in the scope of delivery:
The eyepiece has a 1.25" barrel, so it can be removed from the finder and used on the main telescope, for example to calibrate a GoTo mount. The eyepiece has 23 mm focal length and an apparent field of view of 55°. In combination with the 50 mm objective with its 204 mm of focal length you get a gigantic true field of view of 6.1°, which is more than 12x the diameter of the full moon.

The crosshair eyepiece can be illuminated. The matching illumination is linked in the accessories section.

Autoguider for the TSFRE50:
The focus of the finder is about 5 mm behind the 1.25" receptacle of the focuser. This is sufficient for many eyepieces, such as Plössl eyepieces.
The finder is also suitable for autoguiding, but the autoguider must have a 1.25" housing or you will not be able to focus. Suitable autoguiders include:
ASI120MINI
Starlight Xpress Lodestar

Technical Data

Aperture: 50 mm
Objective focal length: 208 mm
Magnification: 9x
True field of view in the sky: 6.1°.
Weight with mount: 690 grams
Eyepiece side mount: 1.25" with ring clamp
Focus position: 5 mm behind the 1.25" receptacle
Connection thread tube/prism: M28x1
Outer diameter of tube: 54 mm
