TS-Optics top plate for Star Adventurer 2i, GTI

Codice articolo: SKAD-PLATE

Fits all Star Adventurer mounts like Adventurer 2i, Adventurer GTI ...
Replaces the simple EQ5 level saddle plate
Provides a flat support surface with 50 mm diameter
2x M6 internal thread at a distance of 35 mm for attaching saddle plates
Suitable saddle plates are linked

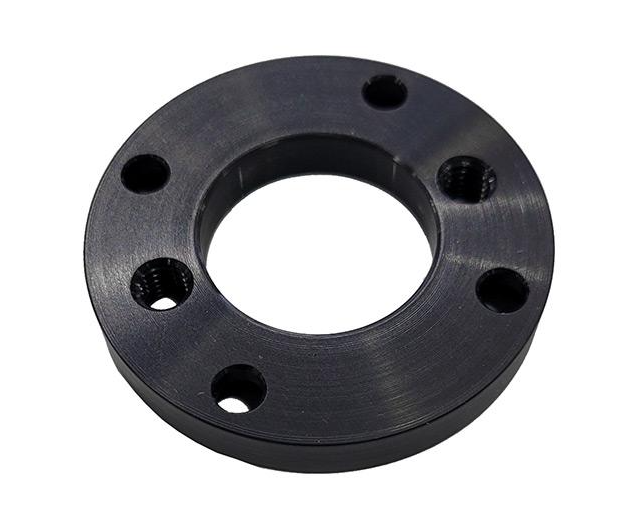

TS Top Plate for Skywatcher Star Adventurer
On the telescope side, the Adventurer from Skywatcher has a simple EQ5 style saddle plate, where a screw presses onto the dovetail bar. If you want to replace this simple clamp with a more elegant and stable surface clamp, you need this attachment plate.

Installation is simple, the original quick-release coupling is removed by loosening the four M4 hexagon socket screws. The SKAD-PLATE now fits directly into the opening and can be attached using the four original screws.

You now have a flat support surface with 2x M6 internal threads with a diameter of 50 mm. You can then attach your dovetail bar, telescope mount or saddle plate.
